Description

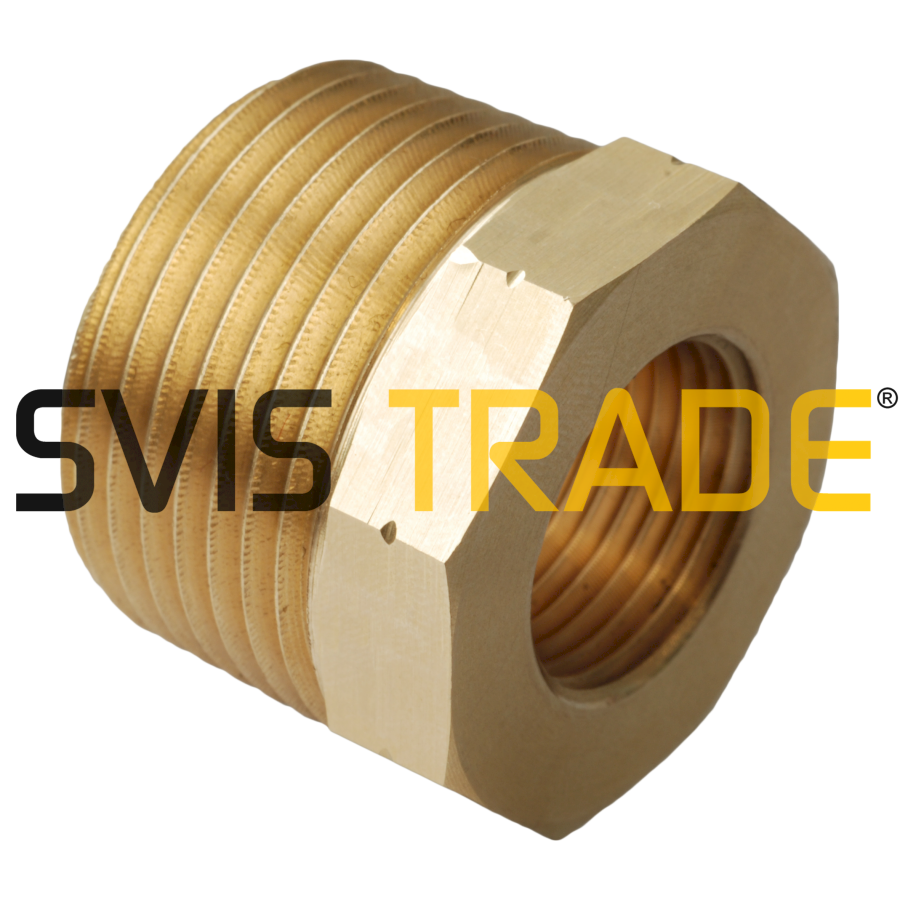

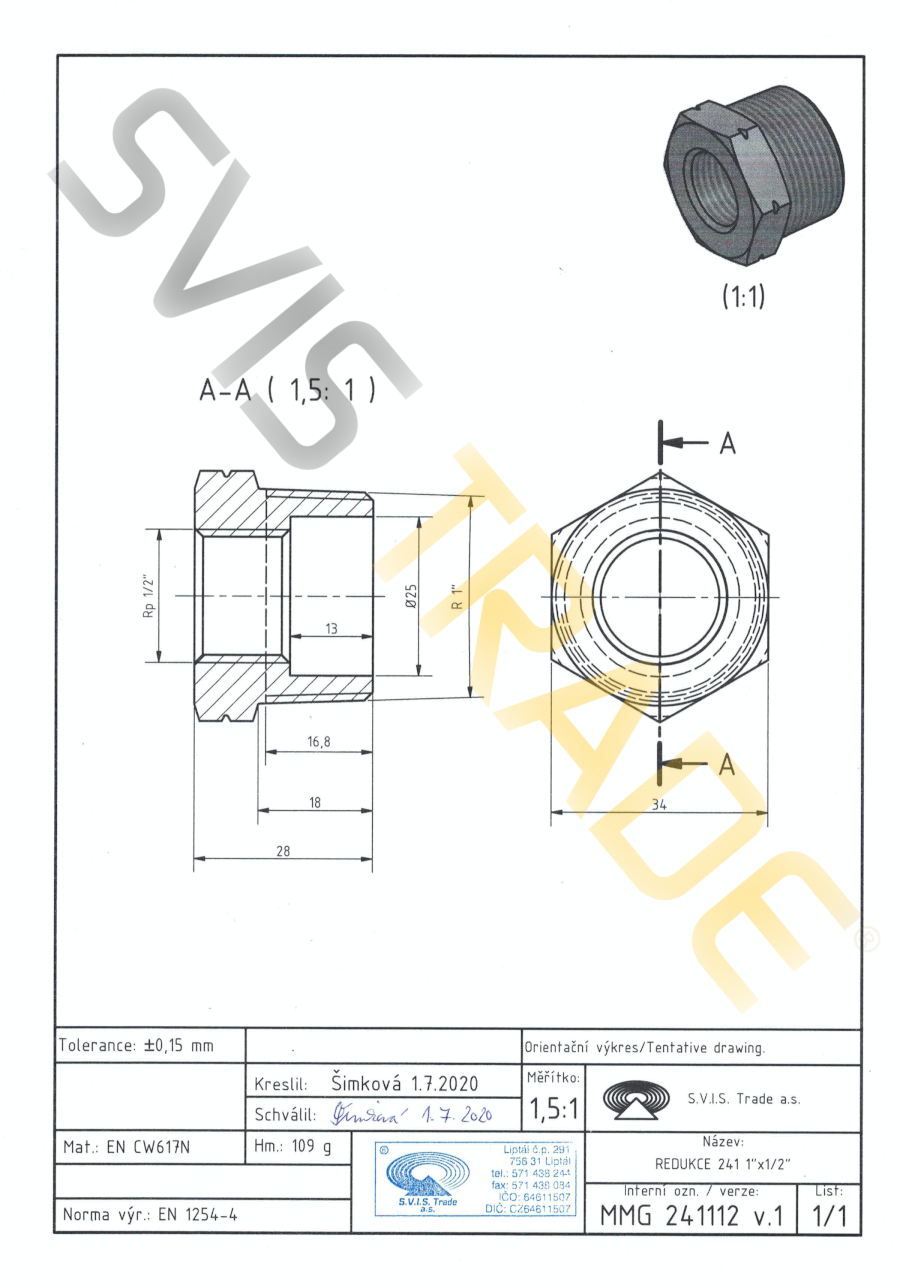

Brass reducing fitting MF – 241 MMG - GAS. Manufactured in accordance with EN 1254-4, solid threaded brass fitting – brass reducer with pipe threads R external tapered x Rp internal parallel. Without surface treatment.
S.V.I.S. Trade a.s. – Czech manufacturer of fittings, holder of ISO 9001, ISO 14001 and OHSAS 18001 certificates. Brass fittings are covered by liability insurance valid throughout the entire EU.
Intended for gas distribution systems, solar systems, water supply systems, drinking water systems, air distribution and non-abrasive and non-aggressive media.
Permissible pressures and temperatures:
Water and aqueous solutions:
from 1/8" to 3/4" 2.5 MPa up to 120 °C; 1.6 MPa up to 220 °C
from 1" to 4" 1.6 MPa up to 120 °C; 0.6 MPa up to 220 °C
Flammable gases:
from 1/8" to 4" 0.5 MPa
Technical gases:
from 1/8" to 4" 1.6 MPa; prevention of medium freezing is required.
Fittings of the GAS series meet the highest requirements for threaded joints.
Brass fittings are manufactured from CW617N brass.
The manufacturer recommends PTFE tape or PTFE sealing thread as sealing material for the installation of brass fittings.
The manufacturer DOES NOT recommend hemp as sealing material for the installation of brass fittings.
Manufacturer’s recommendation for installations: gas distribution systems, solar systems, water supply systems, drinking water systems, heating systems and air distribution systems.
