Description

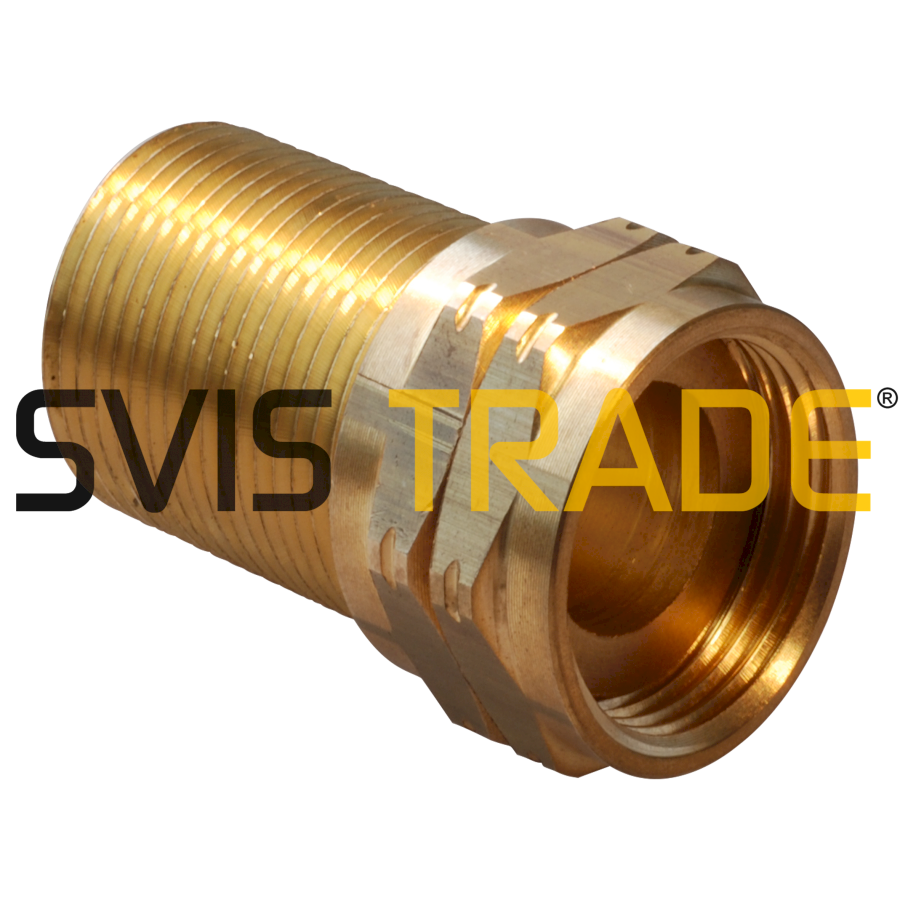

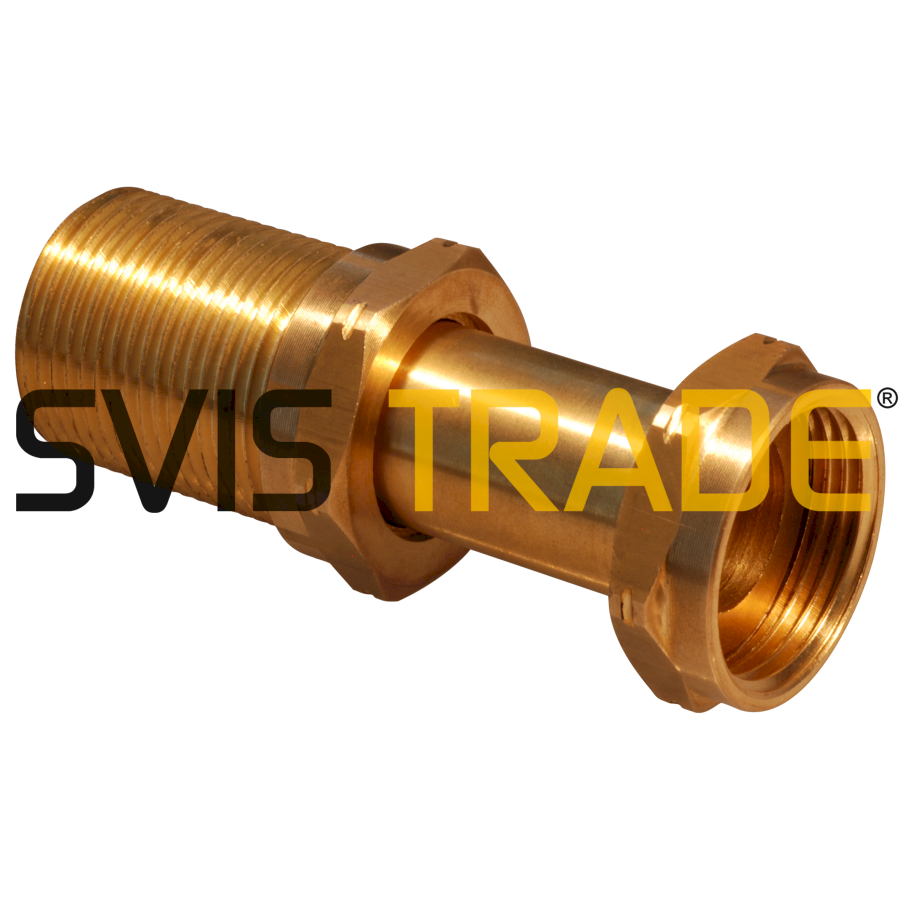

Threaded connections composed of 6 parts, union straight with telescopic insert. After ejecting the inserts to ensure parts with union nut and O-ring washer. Connecting threads G are parallel join for not sealing threads according ISO 228-1. Delivered without flat sealing in union nut. Produced according EN 1254-4.

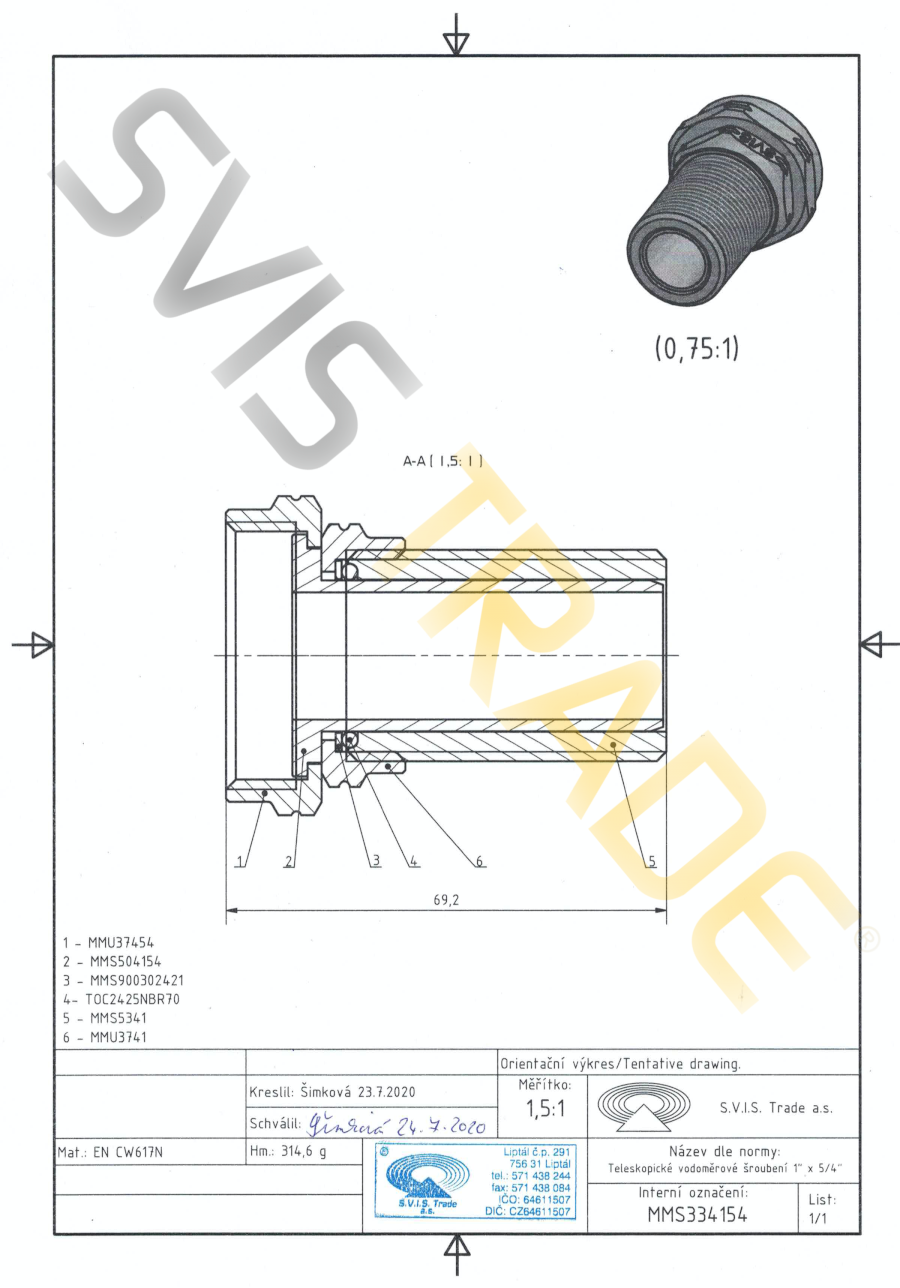

Individual parts fitting 334 = 504 + 2x374 + 534 +washer + o ring
Attention: union should use like built-up of complex only, because individual parts of the union with different production marks or individual parts of different types and same production marks can’t be compatible!
Using: Fittings are used to transport water, drinking water, air, non-abrasive and aggressive substances with maximum working pressure of 1.6 MPa at a temperature of fluid from 0 ° C to 120 ° C, medium can not freeze.
