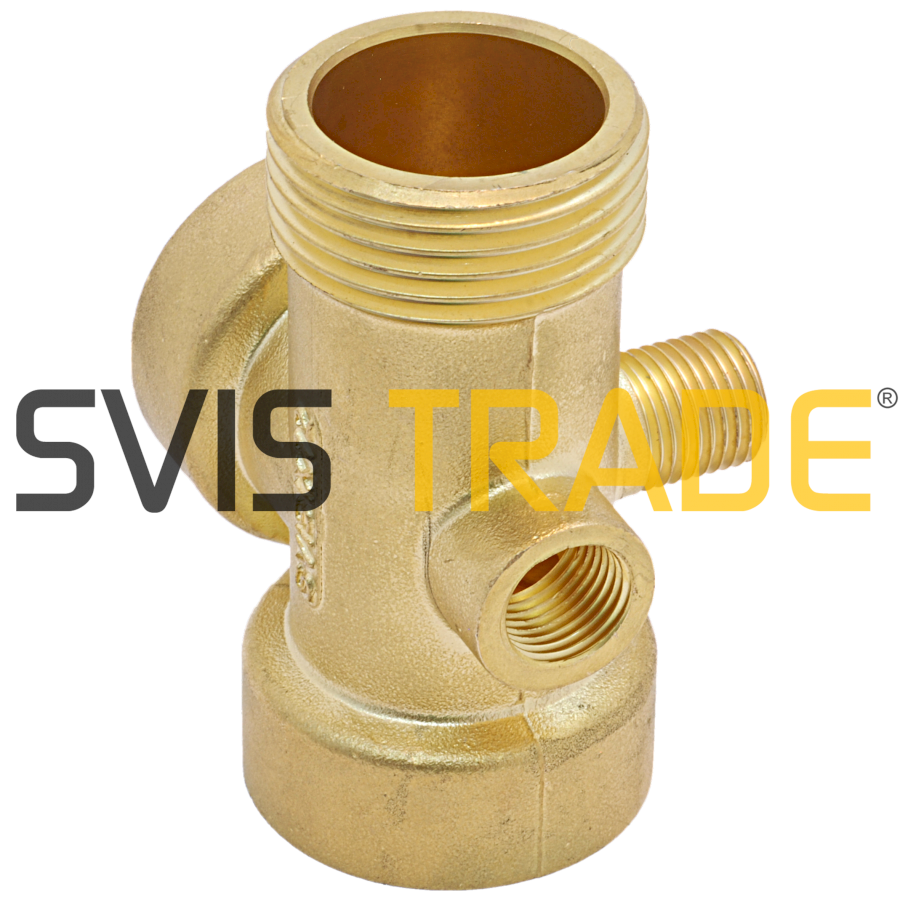

580 1"x82mm 5-way pump fittings connector STANDARD

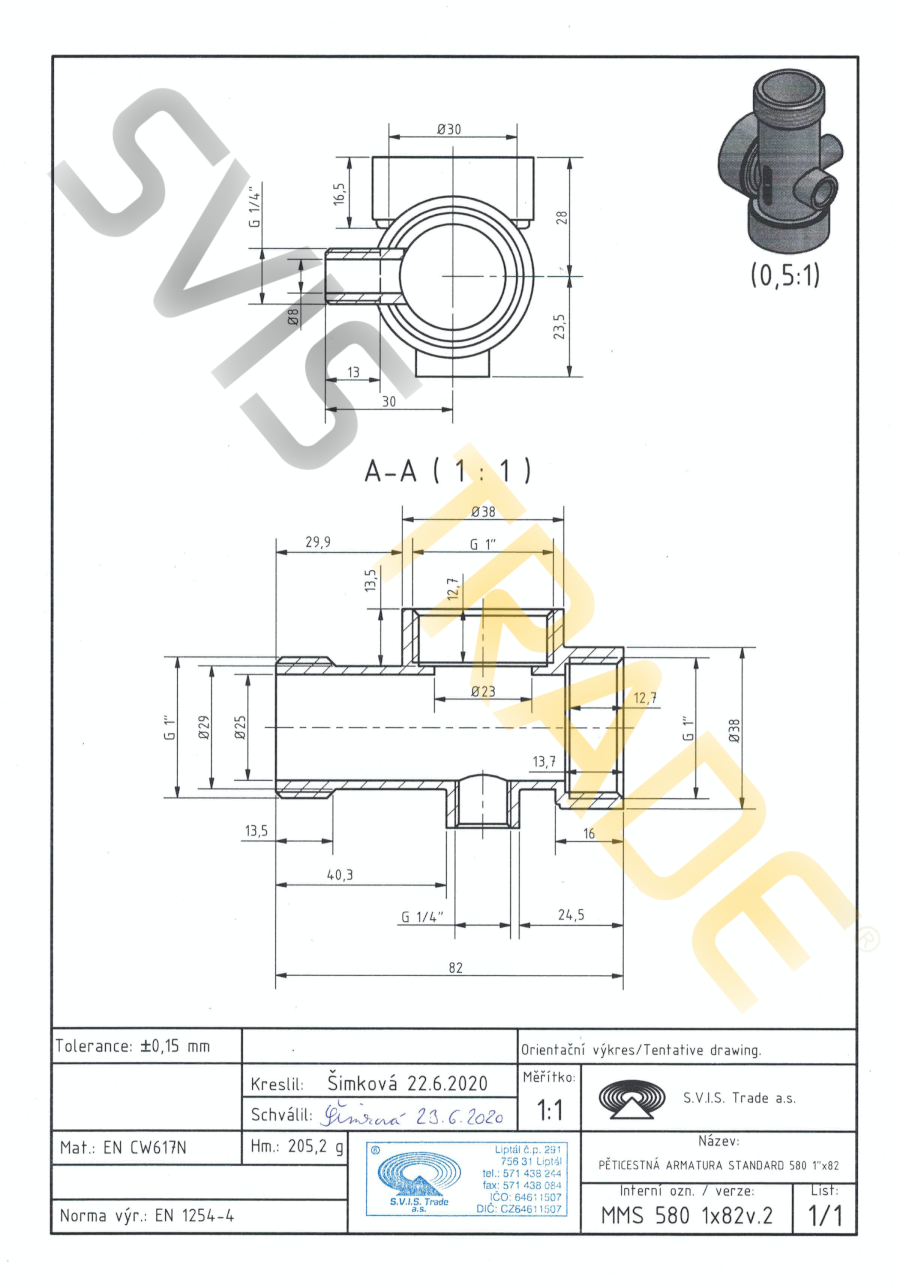

Five-way fitting for domestic water systems and irrigation systems FFFMM – 580 MMS – STANDARD.Manufactured in accordance with EN 1254-4. Threaded brass fitting – 5-way connection module with 3 × internal thread G 1" (for pressurized water inlet, connection of water outlet e.g. to domestic distribution system, and connection of pressure tank) and 2 × external thread G 1/4" (for pressure gauge and pressure switch). Threads are cylindrical pipe threads, non-sealing on the thread, according to ISO 228-1. Without surface treatment.
S.V.I.S. Trade a.s., a Czech manufacturer of fittings, holds ISO 9001, ISO 14001 and OHSAS 18001 certifications. Brass fittings are covered by product liability insurance valid throughout the entire EU.
Designed for water, drinking water, air, and non-abrasive and non-aggressive media, up to a maximum allowable pressure of 1.6 MPa and a temperature range from -20 °C to +120 °C, with the requirement to prevent freezing of the medium.
STANDARD series fittings meet higher requirements for threaded connections.
Brass fittings are manufactured from CW617N brass.
The manufacturer recommends using PTFE tape or PTFE sealing cord as sealing material for the installation of brass fittings.
The manufacturer does NOT recommend using hemp as sealing material for the installation of brass fittings.
Manufacturer’s recommended applications: water distribution systems, drinking water distribution systems, heating systems, air distribution systems.
